Product Details
- ColorPremier White
- Voltage24 VAC
- MountHorizontal
- Programmability Programmable
- Stages2 Heat/2 Cool, 2 Heat/1 Cool Heat Pump
- Temperature Range0 to 120 °F
Description

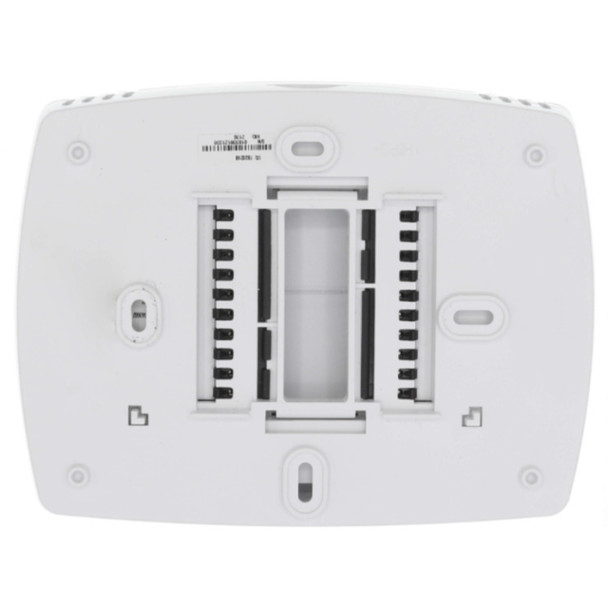

The BACnet Fixed Function Thermostat (BACnet FF) is a configurable device with 19 factory-loaded applications for specific and common projects including fan coil, heat pump and roof top equipment control. It communicates of BACnet MS/TP and includes 3 universal inputs, 2 analog outputs and 6 relay outputs.
- 19 pre-loaded applications for a quick, out-of-the box solution
- Optional integrated wireless receiver saves wiring time and costs, provides more location options
- Internal temperature and humidity sensors, 3 universal inputs, 6 relay outputs, 2 analog outputs
- BACnet-compliant on MS/TP LAN at up to 76.8 Kbps with an internal DDC logic loop of 100 msec
- A configurable device that is capable of stand-alone or integrated operation
- Sleek sophisticated
- Integrates into Niagara Framework® using an intuitive configuration wizard
- Application; Fan Coil, Roof Top, Heat Pump
- Product Dimensions: 4-5/8" Height, 6-1/32" Width
- Screen Dimensions: 3-1/2". High, 4-1/2". Wide, 7/8". deep
- Includes: Integral Temperature and Humidity Sensors, 3 UIs, 2 AOs, 6 Relays
- Used With: Compatible with WEBs-AX
- Mounting: Horizontal on a wall plate directly on the wall or on a 2". x 4". wiring box
- Frequency: 50 Hz; 60 Hz
- Stages: Up to 2 Aux Heat/1 Comp Heat Pumps; Up to 2 Heat/2 Cool Conventional Systems, 1 Heat/1 Cool Fan Coil Units
- Electrical Connections: Screw terminals
- Operating Humidity Range (% RH): 5 to 95% RH, non-condensing
- Supply Voltage: 20 to 30 Vac
- Switch Positions (System): OFF-AUTOSwitch Positions (Fan)OFF-AUTO-LOW-MED-HI
- Operating Temperature Range (F):0 F to 120 F
- Operating Temperature Range (C): -17 C to 48.9 C
- Shipping and Storage Temperature Range (F): -40 F to 150 F
- Shipping and Storage Temperature Range (C): -40 C to 65.6 C
