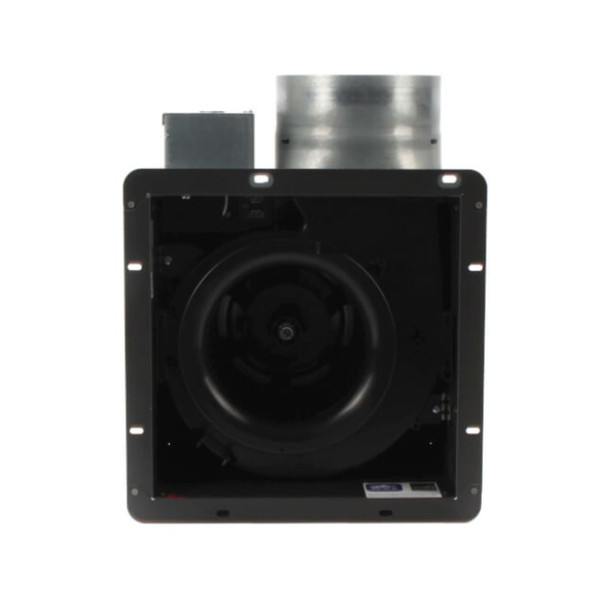

Panasonic FV-1115VQ1 Ventilation Fan (120v, 60Hz, Ceiling Recessed, 110,150,130CFM, 6in)

Note: This product does not include an adapter. Galvanized duct reducers can be purchased separately.

Ventilating fan shall be Low Noise ceiling mount type rated for continuous run. Fan shall be ENERGY STAR® rated and certified by the Home Ventilation Institute (HVI). Evaluated by Underwriters Laboratories and conform to both UL and cUL safety standards.

• Sones at 110 CFM: <0.3 / 0.9
• Sones at 130 CFM: <0.3 / <0.3
• Sones at 150 CFM: <0.3 / 0.5

Motor/Blower:

• Does not work in variable speed mode
• Enclosed brushless ECM motor technology rated for continuous run.
• Fan ventilation rates shall be manually adjustable for 110-130-150 CFM.
• Power rating shall be 120 volts and 60 Hz.
• Fan shall be UL and cUL listed for tub/ shower enclosure when GFCI protected
• Motor equipped with thermal–cutoff fuse.
• Removable with permanently lubricated plugin motor

Housing:

• 26 gauge Zinc-Aluminum-Magnesium (ZAM) housing
• Integrated 6” diameter duct adapter.
• Built-in damper reduces back drafting and helps with blower door testing.
• Built-in metal flange provides blocking for penetrations through drywall as an Air Barrier, and assists with the decrease in leakage in the Building Envelope during blower door testing. Articulating and expandable installation bracket up to 24".

Ceiling Radiation Damper:

• WhisperCeiling® DC™ is UL listed for use with the Panasonic Ceiling Radiation Damper (Model #: PC-RD05C5, sold separately).

Warranty:

• ECM Motor: 6 Years from original purchase date.
• ALL Parts: 3 Years from original purchase date.
