Product Details
- Size1/2 in
- Connection TypeSweat x MNPT
- Lead FreeNo
- MaterialBrass
- MountWall
- Max Pressure125 PSI
- Max Temp (F)120 °F
Description
Note: This item offers anti-siphon protection.
Non-potable water application: This product does not comply with the “Safe Drinking Water Act,” which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking). This item is for non-potable (non-human consumption) water applications only.
Overall Length of this product is 9-1/4". Overall Length is determined by wall thickness plus the inlet length.
Overall Length of this product is 9-1/4". Overall Length is determined by wall thickness plus the inlet length.

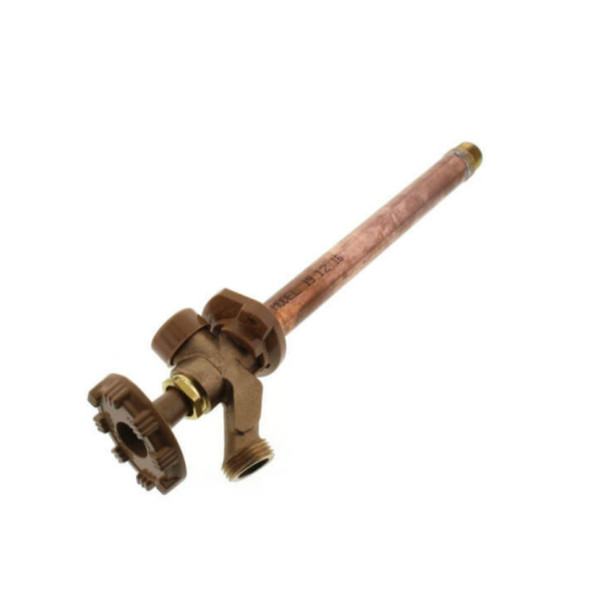

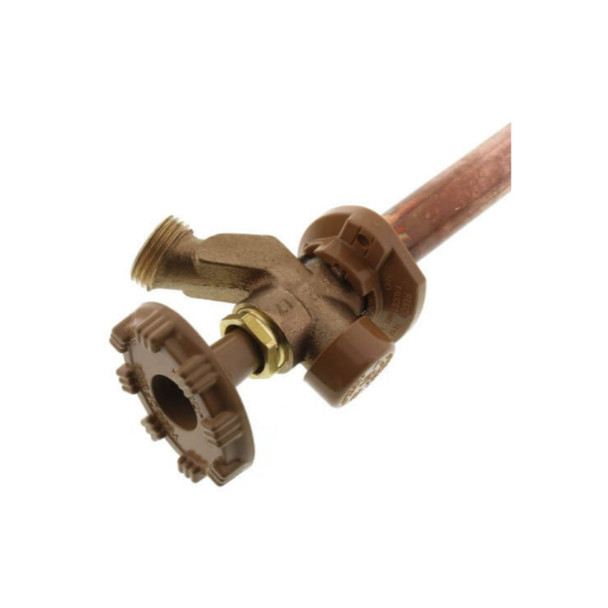

The freezeless Model 19 is intended for irrigation purposes and designed for year-round residential regardless of outside temperature. This product contains an integral backflow protection device which protects up to 125 psi of backpressure and therefore does not require an add-on vacuum breaker.
- Manufactured under one or more of the following patents:3,208,715;3,278,201;5,590,679;5,632,303;6,142,172;6,532,986 and patents pending
- ASSE 1019-Type C Listed
- CSA, cUPC Approved
- Not intended for continuous use
- Patented resetting pressure relief valve prevents the faucet tube from bursting in freezing conditions even if a hose is unintentionally left on
- 3/4" male hose thread nozzle
- Stainless steel seat-eliminates wire draw
- EPDM packing to prevent leaking
- Full circle operating threads on valve body and retainer
- No-lead solder
- Standard “O” size seat washer
- Oval, powder-coated, die cast aluminum handle
- Optional Tee Key available (extra charge)
- Adjustable polycarbonate wall flange
- MAX PRESSURE-125 p.s.i.
- MAX TEMPERATURE-120° F
