Product Details
- Voltage115 v
- Horse Power1/25 hp
- Connection TypeFlanged x Flanged
- Max Pressure150 PSI
- MaterialCast Iron
- Hertz60 Hz
- Max Flow 52 GPM
- RPM1750 RPM
- Speeds3 SP
- Power MethodBattery
Description

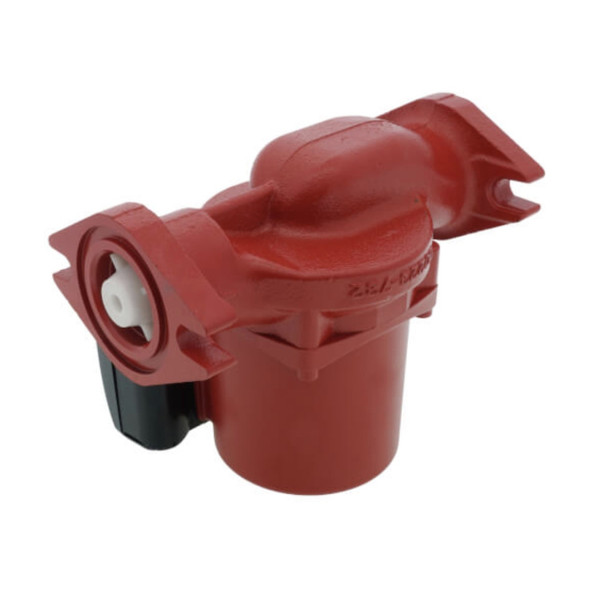

This circulating pump, Astro 2 series, is designed for closed hydronic systems. It is intended to circulate water or glycol solutions. Designed to work up to 230°F and 150 psi, this circulator operates quietly and requires zero maintenance.
- Cast iron pump body construction.
- Ceramic shaft and bearings.
- Cross-reference information is printed on the box, for convenient access.
- e-coating on the inside of cast-iron volutes provides enhanced corrosion protection for improved reliability.
- Flange-to-flange and bolt-to-bolt compatibility offers quick and easy exchange of competing models.
- Plug-in terminal strip saves time.
- High-flow check valve, is pre-installed for convenience. Where the installation does not call for a check valve, it can be removed in seconds.
- Maximum flow: 30 gpm.
- Maximum head: 31.2 ft.
- Five-year Warranty.
