Product Details
- MaterialNickel Plated Bronze
- Temperature Range48 to 79 °F
- MountWall
- Color/FinishWhite
- Used WithV110 Series
Description
Used With:V110 series valves.
Valves may also be used with MV110 Electric Zone Valve Actuator.Provide precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through free-standing radiators, convectors and other heating units with high capacity requirements.
- Continually monitor and adjust room temperature for consistent comfort and relief from under-heating and overheating.
- Designed with the higher capacity normally required by U.S.A. heating systems.
- Valve seat disc, which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems.
- Nickel-plated bronze casted body with working parts in cartridge insert for ease of service.
- Controls include sensor, setpoint dial and valve actuator; components may be integral or connected by capillary tubes.
- Require no electrical connections.
- All working parts are replaceable using service tool (MT100C1011) while valve remains in service, in-line, under pressure.
- Valves normally open without control mounted.
- Meet ASHRAE Standard 102-1989.

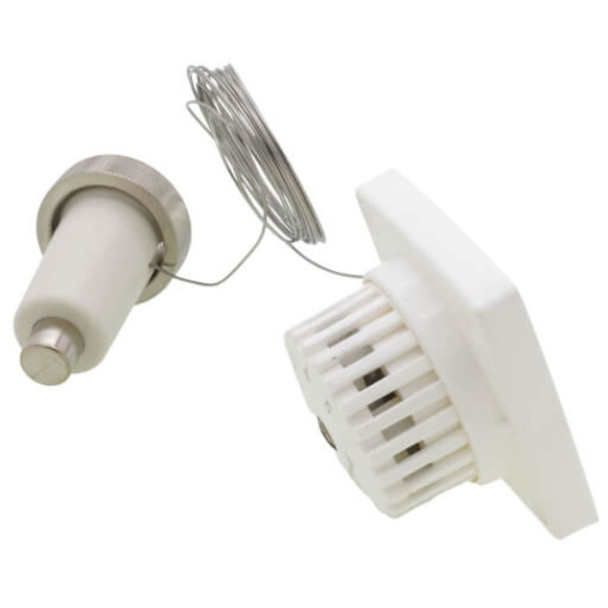

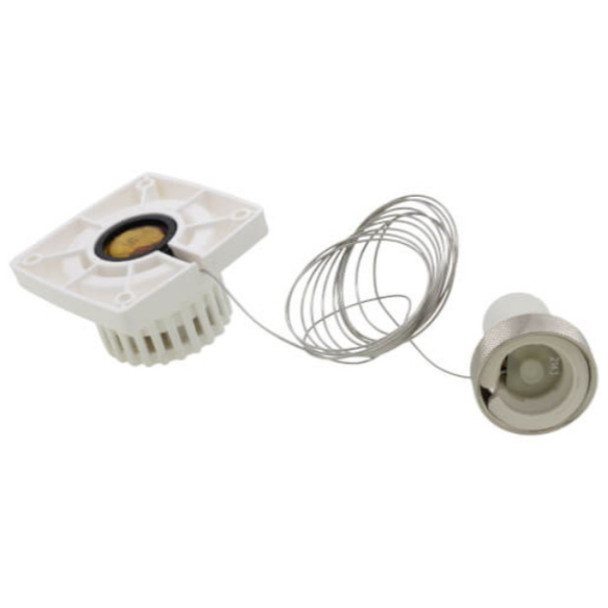

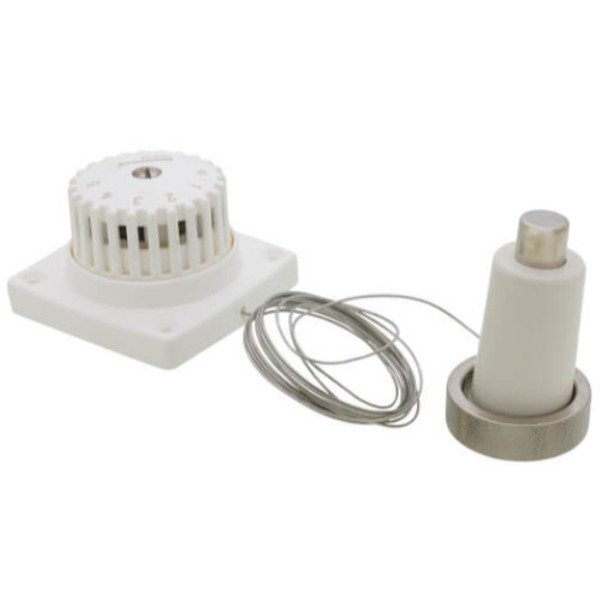

- Description: High Capacity Thermostatic Radiator Actuator with remote sensor, 6ft 8in. capillary and 1 19/32 in. collar diameter.
- Application Type: Controller with combined remote setpoint and sensor mounted on a wall. Setpoint/sensor connect with a capillary tube to an actuator, which mounts on the valve body. For V110 valves.
- Application: High Capacity Thermostatic Radiator Actuator.
- Used With Valve: V110.
- Sensor (Integral or Remote): Remote.
- Setpoint (Integral or Remote): Remote.
- Capillary Length (ft): 6 ft. 8 in.
- Capillary Length (m): 2 m.
- Temperature Range (F): 48 F to 79 F.
- Temperature Range (C): 9 C to 26 C.
- Collar Diameter (in.): 1 19/32 in.
- Collar Diameter (mm): 40 mm.
