Product Details
- MaterialBrass
- Size1/2 in
- MountWall
- Connection TypeMPT x Female Sweat
- Lead FreeNo
- Max Pressure125 PSI
Description
This product does not comply with the “Safe Drinking Water Act,” which
requires that products meet low-lead standards in order to be used in
systems providing water for human consumption (drinking or cooking).
This item is for non-potable (non-human consumption) water applications
only.
Note: This item offers anti-siphon protection.
Overall Length of this product is 13-1/4". Overall Length is determined by wall thickness plus the inlet length.

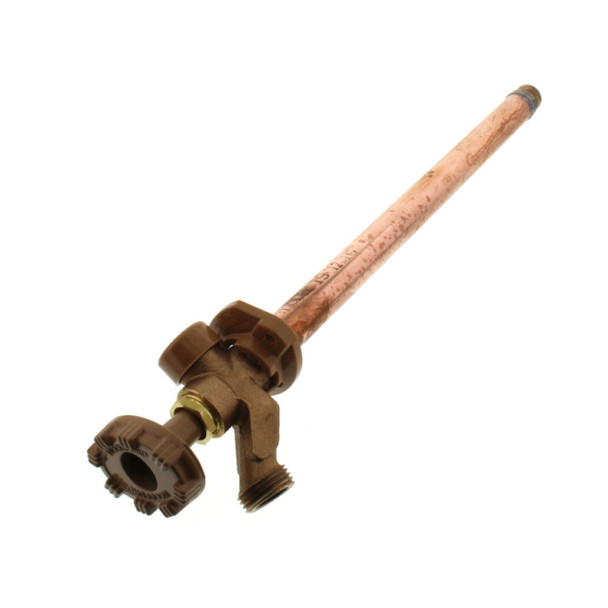

The freezeless Model 19 is intended for irrigation purposes and designed for year-round residential regardless of outside temperature. This product contains an integral backflow protection device which protects up to 125 psi of backpressure and therefore does not require an add-on vacuum breaker.
Specifications:
Overall Length of this product is 13-1/4". Overall Length is determined by wall thickness plus the inlet length.
The freezeless Model 19 is intended for irrigation purposes and designed for year-round residential regardless of outside temperature. This product contains an integral backflow protection device which protects up to 125 psi of backpressure and therefore does not require an add-on vacuum breaker.
Specifications:
- Manufactured under one or more of the following patents: 3,208,715; 3,278,201; 5,590,679; 5,632,303; 6,142,172; 6,532,986 and patents pending.
- ASSE 1019 - Type C Listed.
- CSA, cUPC Approved.
- Not intended for continuous use.
- Patented resetting pressure relief valve prevents the faucet tube from bursting in freezing conditions even if a hose is unintentionally left on.
- 3/4" male hose thread nozzle.
- Stainless steel seat - eliminates wire draw.
- EPDM packing to prevent leaking.
- Full circle operating threads on valve body and retainer.
- No-lead solder.
- Standard “O” size seat washer.
- Oval, powder-coated, die cast aluminum handle.
- Optional Tee Key available (extra charge).
- Adjustable polycarbonate wall flange.
- MAX PRESSURE - 125 p.s.i.
- MAX TEMPERATURE - 120° F.
