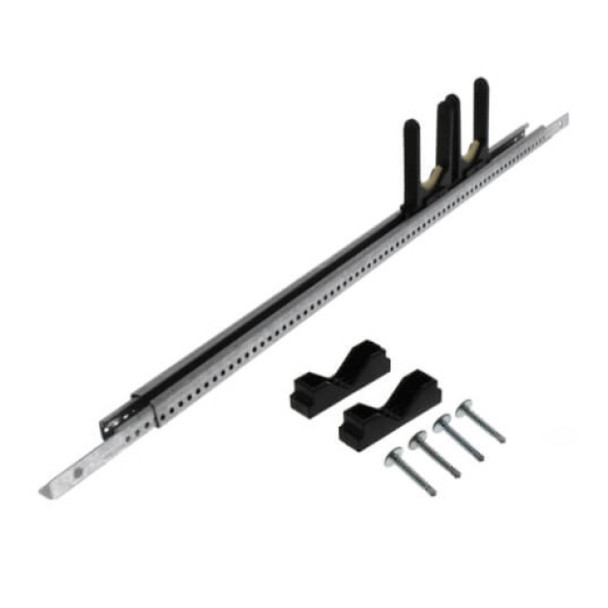

Sioux Chief 523-2424 Bracket (Steel, Zinc Plated, 14 to 26in)

Sioux Chief 523 Series PowerBar universal bracketing system shall be used where necessary for supporting pipe or stub outs. Bracket shall be corrosion resistant, adjust telescopically from 14"–26", and have dual fastening tabs on each end. Pilot holes for #6–#10 screws shall be provided on three sides of the bracket. System shall include screws for fastening tabs, and optional adjustable channel clamps with elastomer inserts for fastening any pipe, tube, cable, etc. System shall be approved for use with copper tube, CPVC tube, PEX/PB tube, steel pipe, CSST lines, plastic or steel conduit, and low voltage DataCom cable. System shall be UV resistant, and UPC listed.

Features:

• Galvanized steel bracket and tough plastic clamp are strong and support tube or pipe without bowing.
• Available with one, two or three TouchDown clamps pre-loaded to reduce installation time.
• Longer bracket expands to fit openings from 14" – 26".
• Clamps secure ¼" – 1" CTS copper, CPVC or PEX.

Safe Working Load:

• Bracket Span: 14" - Safe Load: 150 lbs.
• Bracket Span: 17" - Safe Load: 115 lbs.
• Bracket Span: 21" - Safe Load: 80 lbs.
• Bracket Span: 24" - Safe Load: 45 lbs.


• Nylon Channel Clamps Temperature: –10° – 130°F - Safe Load: 70 lbs.
• Nylon Channel Clamps Temperature: 131° – 179°F - Safe Load: 38 lbs.
• Nylon Channel Clamps Temperature: 180° – 220°F - Safe Load: 12 lbs.
• Nylon Channel Clamps Temperature: 220°F+ - Safe Load.


• PVDF Channel Clamps Temperature: –10°–130°F - Safe Load: 50 lbs.
• PVDF Channel Clamps Temperature: 131°–179°F - Safe Load: 35 lbs.
• PVDF Channel Clamps Temperature: 180°–220°F - Safe Load: 25 lbs.
• PVDF Channel Clamps Temperature: 220°F+ - Safe Load.
