Product Details
- Gallons15 gal
- Height21.7 in
- Diameter16 in
- Max Temp (F)220 °F
- Weight32 lbs
- MaterialSteel, Butyl Rubber
Description

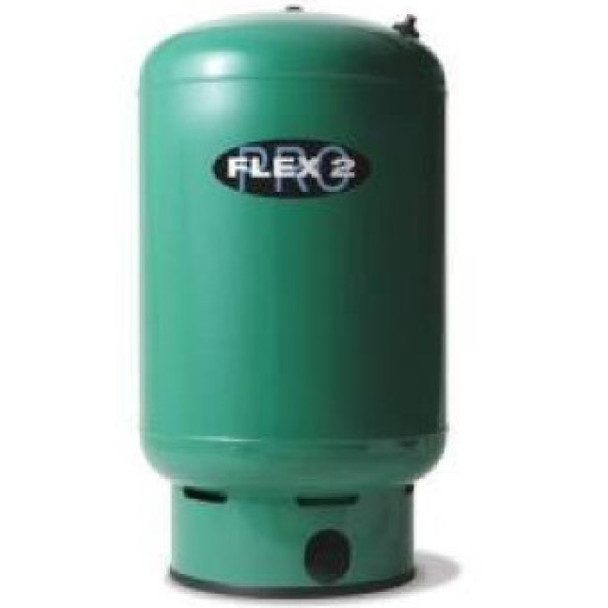

SXHT-30 15 gallon Flexcon Expansion tank is constructed of the highest quality steel, the SXHT is a true work horse. HTX comes standard with a 100% butyl diaphragm. SXHT goes even one step further with our patented CAD2 diaphragm, offering even lower permeability rates at higher temperatures. Additionally, both tank lines’ diaphragms are oversized, which maximizes drawdown and minimizes wear. This design feature virtually eliminates diaphragm stretch, further promoting longevity.
- Tank: 16- gauge cold rolled steel
- 15 Gallon
- 1? Male NPT thread
- Vertical floor standing installation
- Finish: Appliance-quality paint for corrosion resistance
- Diaphragm Material: 100% butyl rubber
- Connection: Welded steel
- Testing: High pressure, seam weld, helium, final precharge check
- Air valve: Brass valve with O-ring seal
- Warranty: Five year
