Product Details
- Size1-1/4 in
- Connection TypeFNPT x FNPT
- MaterialStainless Steel
- Max Pressure400 PSI
- Max Temp (F)350 °F
Description

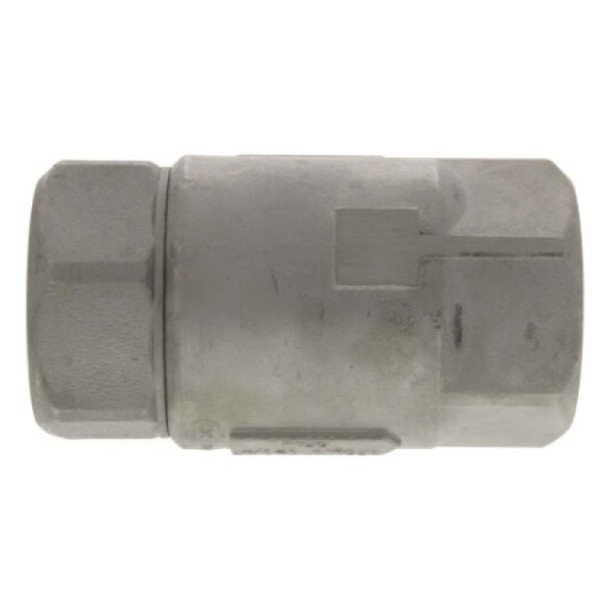

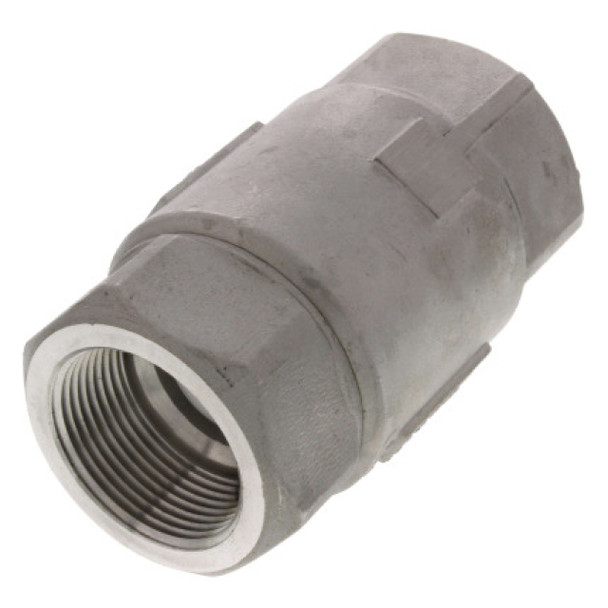

1-1/4" Threaded Stainless Steel Spring Check Valve.
The 62-100 Series is uniquely suited for applications in corrosive environments, including chemical processing, pulp and paper and other process industries. The rugged stainless steel body and RPTFE ball check provide reliable, patented protection against reverse flow.
Features:
The 62-100 Series is uniquely suited for applications in corrosive environments, including chemical processing, pulp and paper and other process industries. The rugged stainless steel body and RPTFE ball check provide reliable, patented protection against reverse flow.
Features:
- Unique design (U.S. Patent # 4,172,465).
- Spring-loaded for fast seating action.
- Center guided so that radial alignment is never needed.
- Straight-through flow minimizes pressure loss.
- RoHS Compliant.
- ASTM A351, CF8M.
- MADE IN USA.
