Product Details
- Voltage24/120/240 VAC
- Temperature Range-40 to 248 °F
- Hertz50/60 Hz
Description

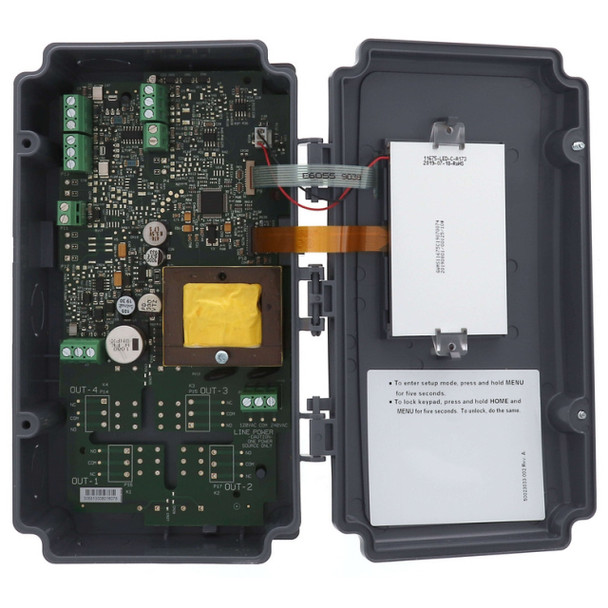

The T775 electronic remote temperature controllers are the next
generation of commercial and agricultural controls capable of remote
sensing of temperature and providing switched and/or proportional
outputs to various types of loads.
- Save time on installations with the easy-to-use graphical Interface, large display, and the intuitive programming.
- Use the time clock scheduler or digital input to control the setback and disable output options to help save energy.
- Protect equipment from freezing or overheating on models with the modulating high or low limit control option.
- Get pinpoint control on modulating outputs by setting the integral and derivative times (PI or PID).
- Configure models with reset in a few easy steps.
- Control floating actuators with floating outputs on select models.
- Eliminate the need for a separate time delay device and protect equipment with the minimum off time option.
- Sensor 5002159-001 included with non-NEMA 4X models.
- Sensor T775-SENS-WR included with NEMA-4X models.
- Application: On/off or analog controller for applications where electronic accuracy and remote sensing of temperature is required.
- Type: Modulating-NEMA 1.
- Analog Outputs: 2.
- Relay Outputs: 0 SPDT.
- Sensor Inputs : 2.
- Relay Contact Ratings (24 Vac): 10.0A resistive.
- Relay Contact Ratings (120 Vac): 1/2 hp; 9.8 AFL, 58.8 ALR, 125 VA Pilot Duty.
- Relay Contact Ratings (240 Vac): 1/2 hp; 4.9 AFL, 29.4 ALR, 125 VA Pilot Duty.
- Sensor Element: 1097 ohms PTC at 77 F (25 C).
- Number of Sensor Inputs: 2.
- Sensors Included: 50021579-001 (1).
- Maximum distance to sensor (ft): Up to 1,000 ft.
- Setpoint Temperature Range (F): -40 F to 248 F.
- Accuracy (F): ±1 F at 77 F.
- Differential Temperature (F): 1 F to 150 F.
- Analog Output Type: Electronic Series 90.
