Product Details
- Voltage115 VAC
- Horse Power1/50 hp
- Max Pressure6.5 PSI
- MaterialPlastic, GF Polypropylene
- Amperage1 A
- Hertz60 Hz
- Max Flow 65 GPH
- ColorWhite, Black
- Wattage60 W
- Dimensions11 x 5 x 7 in
- Weight4.5 lbs
- Power MethodCorded Electric
Description

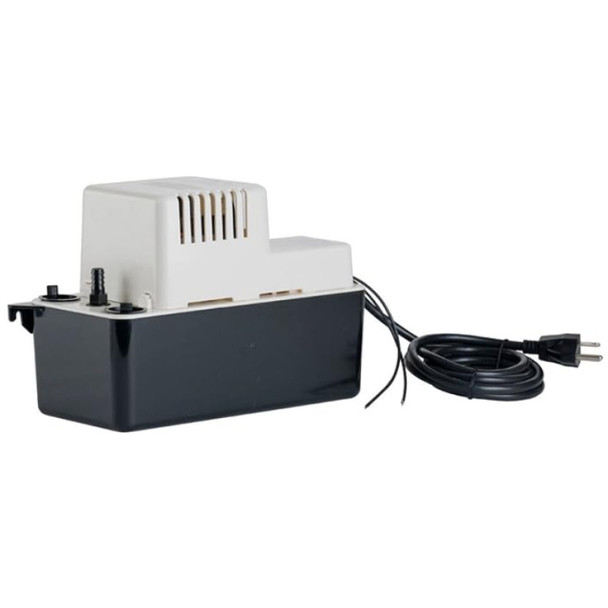

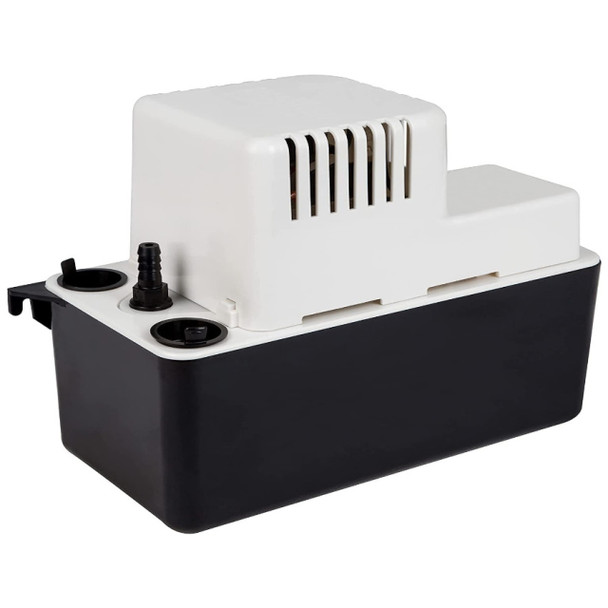

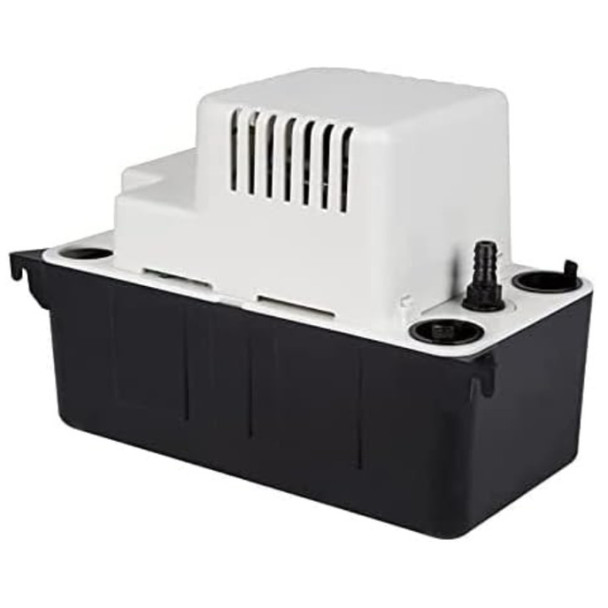

The Little Giant 115 Volt, 1/50 HP VCMA-150ULS is ideal for removing condensate from HVAC equipment including air conditioners, de-humidifiers, condensing boilers, and high-efficiency oil or gas-fired furnaces. This unit comes with a safety switch that can be wired to the appliance to turn the appliance off or can be wired to an audible or visual alarm (not included).
Little Giant VCMA Series is ideal for collecting, detecting, and the automatic removal of condensate from air conditioning equipment, de-humidifiers, high efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required. The VCMA-15ULS features a stainless steel pump shaft, a snap-action pump switch, a removable 3/8 inch barbed check valve, a 6 foot power cord, and a 1/50 horsepower high performance motor with thermal overload protection. The pump also features an ABS tank, ABS motor cover, and ABS volute. With a check valve, the VCMA-15ULS pumps 65 GPH (with a discharge head of one foot). The pump's tank has a capacity of 1/2 gallon.
- AUTOMATIC CONDENSATE PUMP: features a vertical-type switch to reduce footprint and is designed to automatically remove condensate produced by boilers, furnaces, air conditioners and de-humidifiers
- THERMALLY PROTECTED MOTOR: 1/50 HP, 1 Amp, 60 Watts, 115 Volts, 60 Hz, fan-cooled motor; CSA listed in the USA and Canada
- BUILT TO LAST: stainless steel motor shaft, thermal overload protected motor; CSA certified to US and Canadian standards
- PUMP WITH SAFETY SWITCH: can be connected to shut down the air conditioner condenser or wired to an alarm to warn of possible tank overflow
- SPECIFICATIONS: 1/50 HP; 115 Volts, 1 Amp, 60 Watts, 3/8-inch OD barbed discharge, 65 GPH at 1-foot head, 15-foot shut-off, maximum 6.5 PSI, 3 inlet drain holes, 6-foot cord; maximum water temperature: 140 F, safety switch included
