Product Details
- Size1/2 in
- Connection TypeFNPT x FNPT
- Lead FreeNo
- MaterialBrass
- Port TypeFull
- Max Pressure600 PSI
- Max Temp (F)400 °F
Description

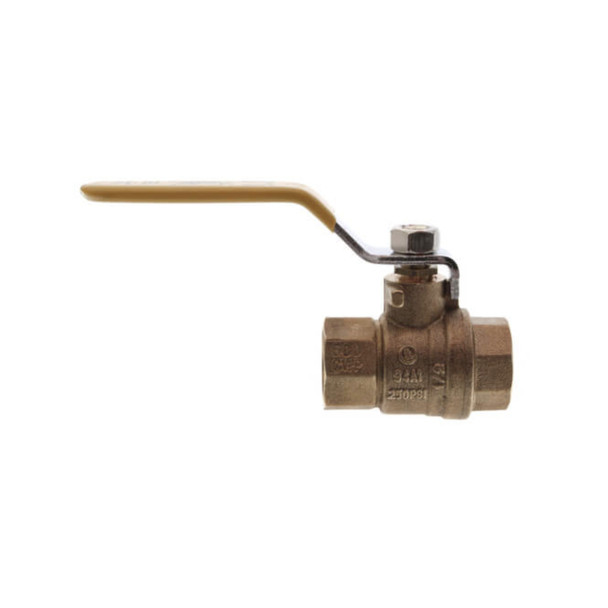

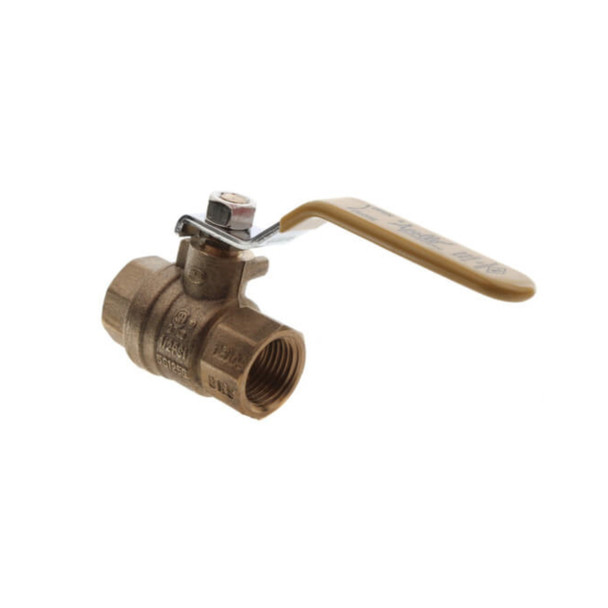

The Apollo InternationalTM 94A forged brass ball valves combine reliable operation with maximum economy. Ideal for general flow control applications including HVAC, fuelgases, and fire protection trim and drain etc. Valves include most pertinent agency approvals.
Features:
Features:
- Two Piece Ball Valve.
- Size 1/2".
- FNPT Connection.
- .Max Pressure 600 PSI WOG.
- 150 PSI WSP.
- Full Port.
- Material of Construction Brass.
- Seats PTFE.
- Stem Material Brass.
- Handle Lever.
- Temp. Range 0 To 400 F.
- Overall Length 4.566".
- Standards UL CSA.
- Valve Design Rating: 600 CWP (400 CWP 2-1/2" to 4").
- Temperature Range 0°F - 400°F.
This product does not comply with the “Safe Drinking Water Act,” which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking). This item is for non-potable (non-human consumption) water applications only.
