Product Details
- Voltage24 v
Description
Includes: Mounting bracket, self-centering shaft adapter.

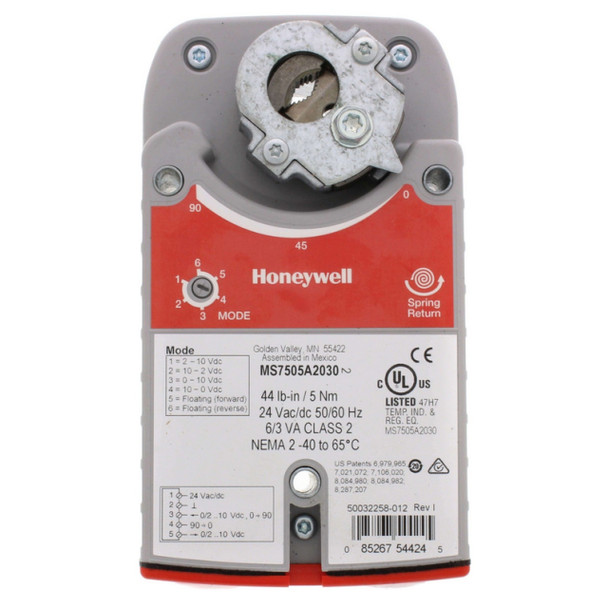

The MS7505 is a 44 lb-in (5Nm), spring return direct-coupled, low voltage actuator that accepts floating, on/off (SPDT), or modulating (0/2-10 Vdc) control and feedback for: air dampers, air handlers, ventilation flaps, louvers, and ball valves.
The MS7505 is a 44 lb-in (5Nm), spring return direct-coupled, low voltage actuator that accepts floating, on/off (SPDT), or modulating (0/2-10 Vdc) control and feedback for: air dampers, air handlers, ventilation flaps, louvers, and ball valves.
- Brushless DC submotor with electronic stall protection on all models.
- Self-centering shaft adaptor (shaft coupling) for wide range of shaft sizes.
- Models available with combined floating and modulating control in a single device.
- Models available with an internal end switch.
- Access cover to facilitate connectivity.
- Durable plastic housing with built-in mechanical end limits.
- Spring return direction field selectable.
- Shaft position indicator and scale.
- UL (cUL) listed and CE compliant.
- All models are plenum rated per UL873.
