Description
Used with valves V100, V2000. May also be used with MV100 Electric Zone Valve Actuator. Allow automatic temperature control in two-pipe steam or hot water
systems for free standing radiators, convectors, and other heating units
with standard capacity requirements. Provide comfort and energy savings
at affordable prices.
- Continually monitors and adjusts room temperature for consistent comfort and relief from under-heating and overheating
- Valve seat disc, which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems
- Nickel plated brass casted body with working parts in cartridge insert for ease of service
- Controls include sensor, setpoint dial and valve actuator; components may be integral or connected by capillary tubes
- Require no electrical connections
- All working parts are replaceable using service tool (MT100C1016) while valve remains in service, in-line, under pressure
- Valves normally open without control mounted

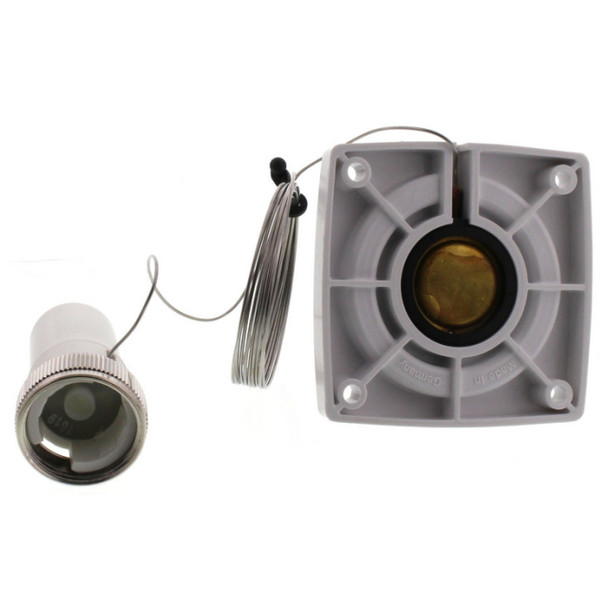

- Description: Thermostatic Radiator Actuator with remote sensor, 6ft capillary and 1-3/16 in. collar diameter
- Application Type : A control with combined remote setpoint and sensor mounted on wall. Connected by a capillary tube to an actuator, which is mounted on the valve body. For V100 valves
- Application: Standard Capacity Thermostatic Radiator Actuator
- Sensor (integral or remote): Integral
- Setpoint (Integral or Remote): Remote
- Capillary Length (ft): 6-1/2 ft. or 16 ft
- Temperature Range: 48 F to 79 F
- Collar Diameter: 1-3/16 in
- Replaces: American Steam - 02-300-00. Taco - 5206. Danfoss RA2000 - 013G8262. Ammark - 76. TM Macon - TML B42000. NT Macon - NTL B45000. (in combination with V100)
