Product Details
- Voltage18/240 VAC
- Dimensions2 x 2 x 1.25 in
- Amperage1.5 A
Description

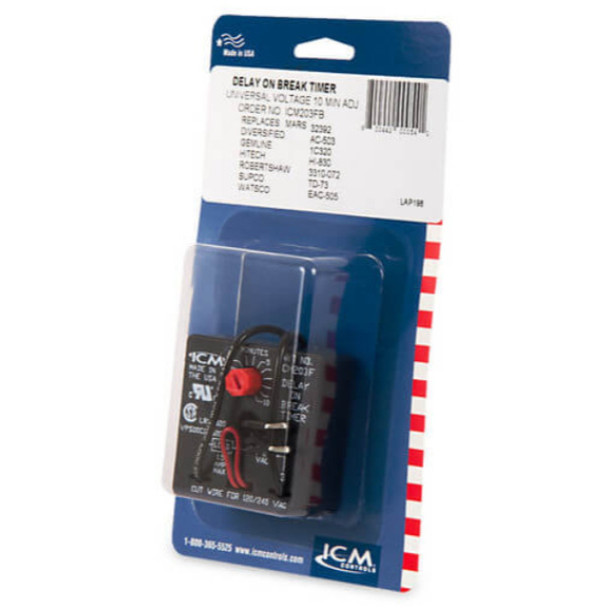

Delay on Break Timers ("anti-short cycle", "ON delay on break") helps to protect air conditioning, refrigeration and heat pump equipment from damage which may be caused by the rapid short cycling of compressors.
Mode of Operation - Upon application power, the load is energized. When the thermostat or other switch opens or there is a loss of power, the load is de-energized and the delay period begins. The compressor will not start again during the delay period. Restart occurs after the delay period has elapsed.
Mode of Operation - Upon application power, the load is energized. When the thermostat or other switch opens or there is a loss of power, the load is de-energized and the delay period begins. The compressor will not start again during the delay period. Restart occurs after the delay period has elapsed.
- Universal voltage operation.
- Higher 1.5 amp power rating.
- Compressor lockout-anti-short cycle timer.
- .03-10 minute (1.8-600 seconds) knob adjustable delay.
- Helps protect compressor from damage caused by rapid short cycling.
- Simple 2 wire hookup.
