Product Details
- MaterialBronze
- Size1-1/4 x 1-1/2 in
- Connection TypeMPT x FPT
- Max Temp (F)250 °F
- Pressure Set Point15 PSI
Description

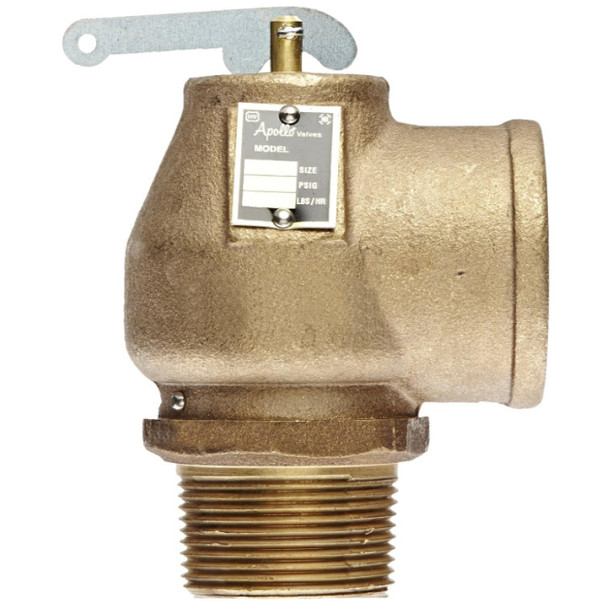

The Apollo® 13 Series bronze low pressure steam
safety valve is designed to meet ASME Section IV code
requirements for protection of steam heating boilers,
systems and similar equipment.
- Flat seat, PTFE faced disc for positive seal.
- Standard set pressure of 15 psig; capacities apply to valves set @15 psig.
- Positive drainage of condensate from seat area.
- No. 13-101 is top outlet discharge.
- Registered in all Canadian provinces and territories, CRN #0G8547.5C.
- National Board certified at 15 psig.
Note:
This product does not comply with the “Safe Drinking Water Act,” which
requires that products meet low-lead standards in order to be used in
systems providing water for human consumption (drinking or cooking).
This item is for non-potable (non-human consumption) water applications
only.
