Product Details
- Size1/2 in
- Connection TypeMIP x Sweat
- Lead Free (Yes/No)No
- MaterialBrass
- Temperature Range (F)120 °F
- Max Pressure (PSI)125 PSI
Description
Note: This item offers anti-siphon protection.
This product does not comply with the “Safe Drinking Water Act,” which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking). This item is for non-potable (non-human consumption) water applications only.

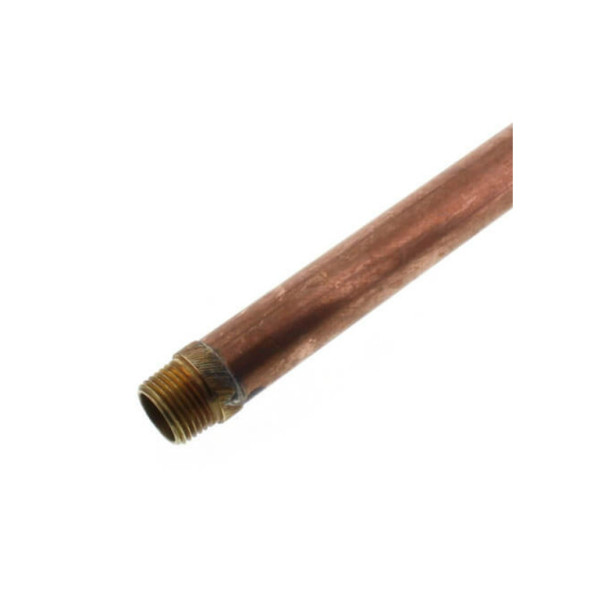

Overall length of this product is 9-1/4".Overall length is determined by wall thickness plus the inlet length.
The freezeless Model 17 is designed and intended for year- round residential irrigation purposes regardless of outside temperature. This faucet will not rupture from freezing when the valve is shut off and the hose is removed. The Model 17 contains an integral backflow protection device which protects up to 125 psi of backpressure and therefore does not require and add-on vacuum breaker.
- Manufactured under one or more of the following patents: 3,208,715; 3,278,201; 5,590,679; 5,632,303
- ASSE 1019 - Type C Listed
- CSA, cUPC Approved
- 1/2" Copper Sweat Fitting : K, L, or M Inside
- 3/4” male hose thread nozzle
- Stainless steel seat - eliminates wire draw
- EPDM packing to prevent leaking
- Full circle operating threads on valve body and retainer
- No-lead solder
- Standard “O” size seat washer
- Powder-coated, die cast aluminum handle
- Adjustable polycarbonate wall flange
- Max Pressure: 125 p.s.i.
